Sprint-Layout (LAYOUT50.EXE). Sprint-Layout is a software program developed to help customers design and edit printed circuit board layouts while providing...

Fast, precise PCB design software for creating professional circuit layouts with intuitive tools and high-precision editing

Design and edit printed circuit board layouts with a powerful utility that includes multiple creation tools and a rich template library for solder pads, SMD pads, tracks, zones, text-labels, and more. Streamlined hotkeys boost workflow efficiency, and all generated layouts can be exported as BMP, JPG, GIF, or EMF.

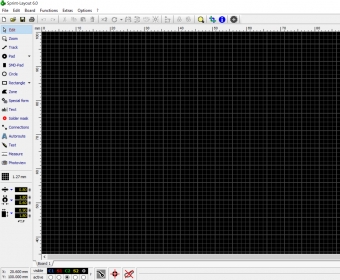

Sprint-Layout is a professional PCB design software solution built for users who need to create single-sided, double-sided, or multilayer PCB layouts. With a balanced interface, it provides a clear tool panel, main menu, and action bar arranged around the central workspace—making detailed work smooth and accessible. Ideal for DIY electronics design, circuit board layout editing, and high-precision PCB prototyping.

The program includes comprehensive features such as customizable text-labels, solder pads, tracks, and zones. Its Automatic Ground Plane function fills unused layout areas with copper to support HF-board screening. A robust SMD component library enables easy drag-and-drop placement, rotation, labeling, and adjustment, while the Footprint-Wizard allows users to generate custom component footprints by selecting types or defining parameters.

Overall, Sprint-Layout delivers a versatile circuit board layout editor with powerful tools and advanced customization options, though full functionality requires a capable PC and a paid license.

• Wide toolset for creating and editing PCB layouts with precision.
• Automatic Ground Plane for efficient copper-area filling on HF-boards.
• Extensive SMD component library with drag-and-drop functionality.
• Footprint-Wizard for generating custom component footprints.
• Exports designs in BMP, JPG, GIF, and EMF for easy sharing and printing.
